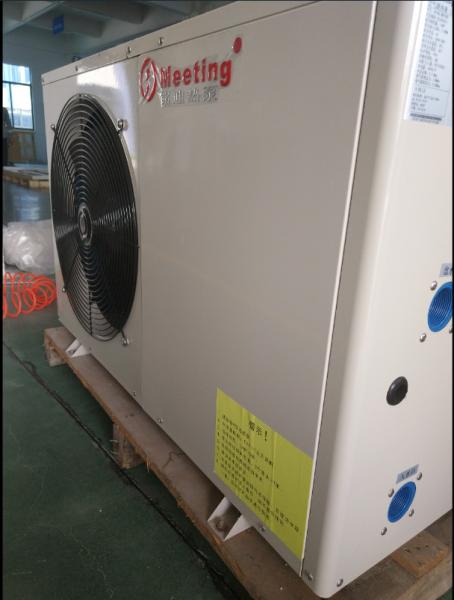

House heating 3p air source heat pump side bloming machine Rated
heating capacity12 kw
Air source heat pump
Quick Details
| Type: Air Source Heat Pump |
Installation: Wall Mounted/Freestanding
|
| Storage / Tank less: Heating + Cooling + Hot Water |
Housing Material: Stainless Steel or Galvanized
Steel Sheet
|
Use: Household, School, Hospital, Office Building
| Certification: CE, EMC, UL, SAA, ETL, ISO9001 |
Place of Origin: Guangdong, China (Mainland)
| Brand Name: Meeting |
Heat Pump Function: Heating Cooling&Hot Water
| Heat Pump Lifetime: 15 Years+ |
Ambient temperature: -25℃ to 45℃
| Evi Heat Pump Compressor: R407C *Copeland* Scroll |
Inverter Heat Pump Compressor: R410A * Copeland *
| Port of Delivery: Guangzhou/Shenzhen Port |
QC:
1. Complying with ISO standard. Quality Ensured.
2. Complete Inspection for each unit before out of factory,
covering water system and electricity detection and testing,
ensuring 100% right product before shipment.
3. Strict quality control during production. We have liquid soap
detection, halogen detection, electrical detection and
water-soaking detection during production to avoid gas leakage and
electrical problems.
4. Full inspection on bigger parts such as compressors, condensers,
evaporators, expansion valves, flow switches, controllers etc.
Selection inspection for small parts such as sensors, pressure
switches etc.
5. Well noise control by using mute cotton for casing plates and
soft rubber feet for floating compressors, some of the models use
compressor isolation shields.
6. Well insulated with insulated cotton for every pipe and parts,
include compressor, dryer filter and each pipes.
7. We have passed TUV and SGS inspections. We have CE, Ro HS, IEC,
CCC, CB certificates for most of our products. Some of our products
have en14511 test, en14825 test.
A. Payment service
1. T/T
2. L/C (for container order only)
B. Technical service
1. We calculate the capacity and recommend the best models.
2. We supply you the professional refrigeration technical support
and electronic technical support for your installation, debugging
and operation.
3. We supply the spare parts and technical support in and after the
warranty time.
4. We supply the training course to your workers at our factory if
you need.
5. We can offer site training to your workers in your place which
is negotiable.
C. After-sales service
1. Technical support for your installation, operation and
maintenance.
2. Standard warranty time: One years’warranty for heat pumps
You can also pay for extended warranty or we can renegotiate the
longer warranty period.
- Spare parts and technical support at most economic prices after the
warranty.
Certificate we have got :
1> ISO 9001, ISO 14000
2> Our company has been inspected and certificate by EMC
3> CE And EN14511, EN 14825-ERP for heat pump exported to Europe
4> Energy label for all heat pump models sold to over sea market
5> Testing laboratory calibrated by CNAS
Our leading products
Air to water heat pump, inverter heat pump, High water temperature
heat pump.
Mono block house heating heat pump, Split heat pump, Super low
noise heat pump
Heat pump dryer, Ground source heat pump, water to water heat pump,
swimming pool heat pump
Technology Specification
1 . MODEL : MD30D
2 . Rated heating capacity : 12KW
3 . Rated Cooling capacity : 7KW
4 . Hot water supply : 260L / h
5 . Average heating input power : 3KW
6 . Rated heating input current : 13 / 6A
7 . Max outlet water temp : 6 ℃
8 . COP : 4
9 . Power : 220V/380/50V/Hz
10 . Noise 54Db ( a )
11 . Dimension W*D*H mm : 1120 * 490 * 710mm
12 . Packing size W*D*H mm : 1190 * 520 * 865mm
13 . Unit weight : 108 KG
14 . Refrigerant : R417A/R407C/R404A
15 . Working air temp range : ( - 20 ℃ ) — 45 ℃
16 . compressor : Copeland
17 . Air source heat exchanger : Finned heat exchange
Fan : axial flow fan
18 . Hot water side heat exchange : Coil heat exchanger
Water flow L / H 3000L / h
Water pressure down : 40Ka
Pipe size : 25DN
Max flat spuare meter : 100M2
19 . Use : Floor heating Radiator , Bathroom
Household, School, Hospital, Office Building
