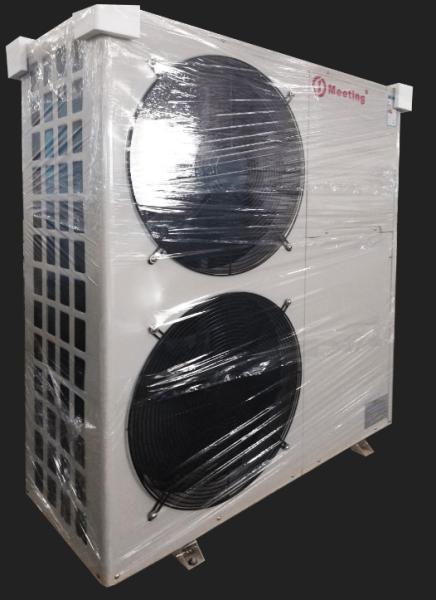

Meeting 80 C degree high temperature heat pump for radiator
heating, fan coil, floor heating and hot life water
Technology Specification
1. HIGH EFFICIENCY & ENERGY SAVING:
Meeeting Air Source Heat Pump Water Heater COP >4 , Saving
70%~80% electricity cost.(7dC Ambient Temp,35dC Output Water Temp)
2. HEAT PUMP COMPRESSOR:
Meeting Air Source Heat Pump use Famous Brand scroll ZWKSE series
compressor and environmentally friendly refrigerant
R407C/R410A/R417, stable working at -25dC ambient temperature.
3. HEAT PUMP EXCHANGER:
Use high efficient tank heat exchanger for heating & domestic hot
water. Stainless steel plate heat exchanger for heating & cooling.
4. AUTOMATIC DEFROSTING:
Automatic defrosting and power-off memory function.
5. INTELLIGENT MICROCOMPUTER SYSTEM:
With LCD panel, can mannually,automatically switch heat pump unit
on/off, timer switch unit on/off, fault alarm, fault code display.
6. MULTIFUCTIONAL SELF-PROTECTION:
Phase sequence protection, high and low pressure protection,
current protection, high and low temperature protection, antifreeze
protection on low temp Heat Pump.
7. ANTI FREEZE:
Add chassis electric heater to avoid condensate water freezes in
winter.
Extraordinary Features for Meeting Air to Water Heat Pump:
1> Hot water output temperature up to 80°C
2> Copeland scroll type compressor with multi-functional
protectors
3> With auxiliary heating control, circulation pump control
4> With timer function
5> Adjustable defrosting, and all weather operates on varied
extreme weather conditions
6> Stable water flow switch
7> With terminal for indoor thermostat, starting or standby the
heat pump
8> Air exchanger (fin-coil) with hydrophilic coating
9> Low noise fan motor, 15 years lifespan
10> Emerson expansion valve, Saginomiya 4-way valve
11> Modular designing, addtional unit could be added onto to
user's requirements
12> Axial type fan motor with nylon fan blades, low power
consumption, low running noise, long usage life
13> Tube in tube heat exchanger produced by Meeting is
low-fouling and easy for maintenance.
14> Anti-corrosion case: coated steel or #304 stainless steel
cabinet with elegant workmanship
15> Power-saving, free-polluted, efficient & economic operation

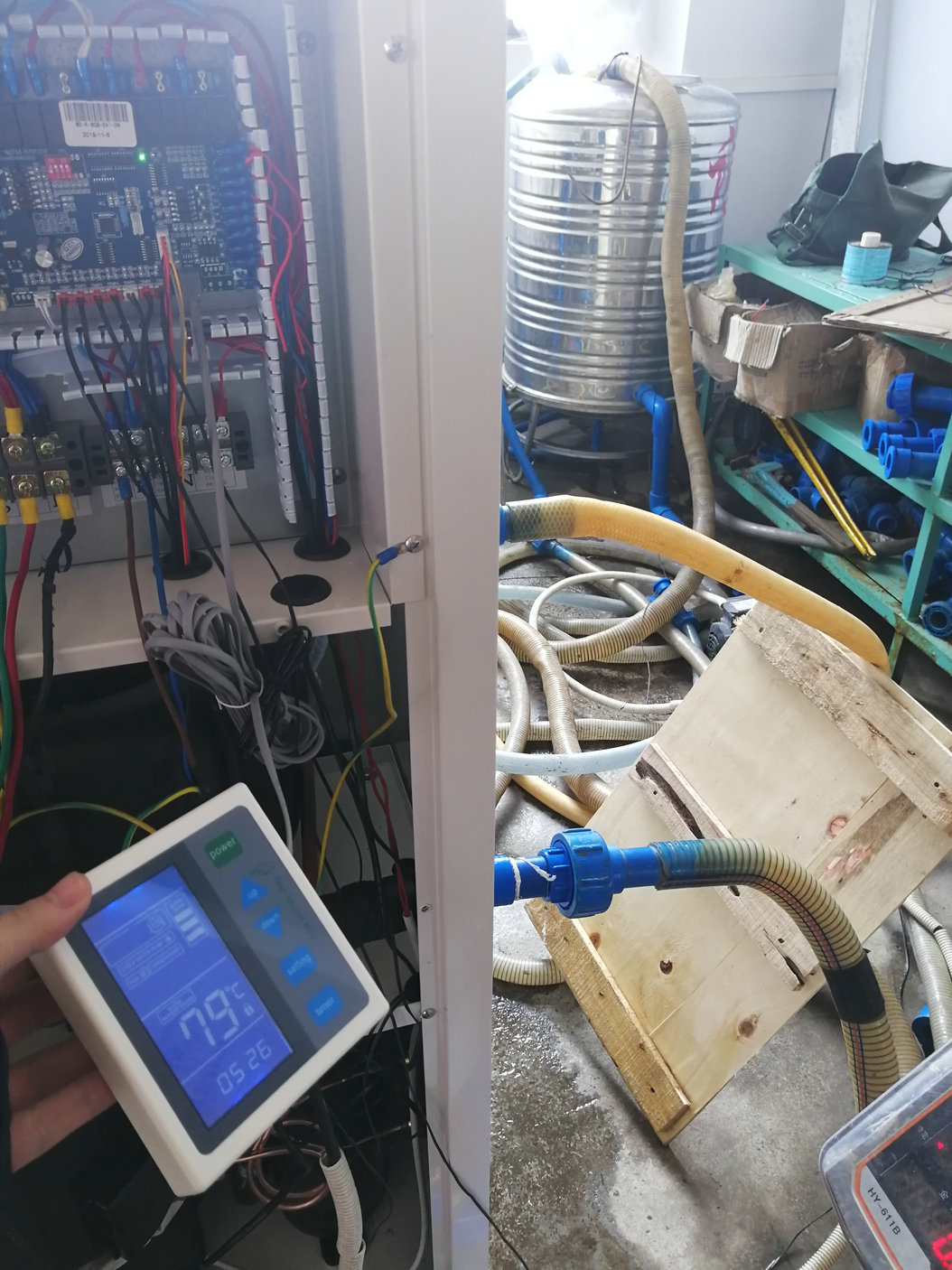

We have to test evey machine here before it leaves the factory, To
make sure every machine work normally and the high temperature can
achieve 80℃
Adopt with world famous parts:
1) Copeland scroll compressor
2) Automaticly controller
3) Stainless steel plate type heat exchanger
4) electronic parts
5) Emerson expansion valve and dry filter
6) Honeywell 3 way revert valve is optional part
7) Adjustable low pressure switch
8) Wilo water pump (option)
9) 3KW electric heater (option)
Advantages
1. Suitable for the coldest winter area
2. The most high efficiency heat pump
