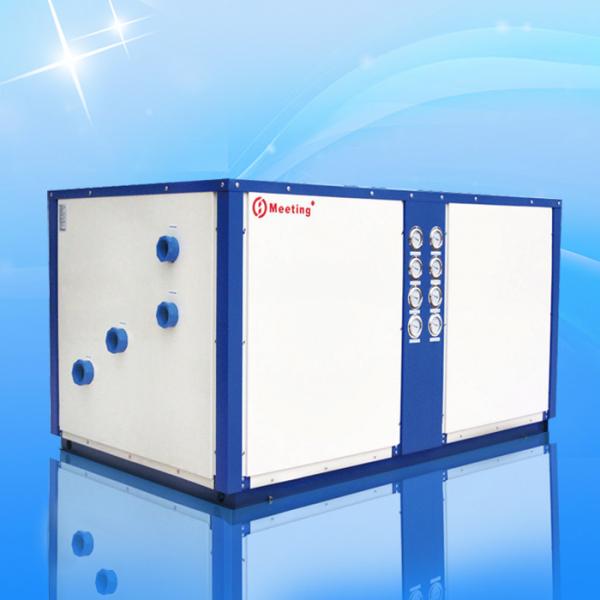

Geothermal source heat pump for cooling and heating average heating
input power 25kw
1. Technology Specification
Porduct Detalis
| MODEL | Unit | MDS300D |
| Rated heating capacity | KW | 100 |
| Hot water supply | L/h | 2400 |
| Average heating input power | KW | 25 |
| Rated heating input current | A | 45 |
| Max outlet water temp | ℃ | 80 |
| COP | | 4.6 |
| Power | V/Hz | 380V/50 |
| Noise | Db(a) | 55 |
| Dimension | W*D*H | mm | 1260×850×860 |
| Packing size | W*D*H | mm | 1350×910×1020 |
| Unit weight | KG | 660 |
| Refrigerant | | R134A |
| Working air temp range | ℃ | (-40℃)—45℃ |
| compressor | Type | | Copeland |
| water source heat exchanger | Type | | Tube heat exchange |
| Hot water side heat exchange | Type | | Coil heat exchanger |
| Water flow | M3/H | 30000L/h |
| Water pressure down | Kpa | 60 |
| Pipe size | DN | 50 |
| Max house heating | M2 | 730 |
Ground source heat pump working principle
The difference between the water source heat pump and the air
source is that the low-temperature and low-pressure liquid
refrigerant exchanges heat with the water in the water/ground
source pipeline in the evaporator, absorbs the heat Q1 in the water
and evaporates into a low-temperature and low-pressure gaseous
state, and then enters into a vaporized state. Compressor works
through compressor W, is compressed into high temperature and high
pressure gas, then enters condenser, exchanges heat with indoor
water, transfers heat Q2 to indoor water, and the refrigerant
condenses into high temperature and high pressure liquid, and then
enters the expansion valve. With throttling, the refrigerant
becomes a low-temperature and low-pressure liquid, and the
throttling refrigerant enters the evaporator and undergoes heat
exchange and evaporation, thereby realizing inverse carnot
The whole process, also Q2=Q1+W in this process |
Porduct feature:
1. Economical operation
Generally cost less to operate than other types of conventional
heating systems, save your electricity or gas bills.
2. Safety
Operate at a high efficiency with no flames, fumes, or flues; Water
and electricity isolated
3. Environmental friendly
Transfer heat that’s already in the environment; Low CO2 emissions.
4. Easy operation
With intelligent control systems which convenient and simple
operation
5. Constant hot water supply
Provide hot water no matter in cloudy day, snowy day or at night,
unlike solar collectors which have to be facing the sun.
6. Wide application
7. Heat pump water heater can be applied to sanitary hot water,
house heating .
FAQ
Q1. Can I have a sample order for Heat pump or Water tank?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-10days, mass production time depend on the
products'quantity.
Q3.Do you offer guarantee for the products?
A: Yes, 12 months since the heat pump depart from the port of
loading (Refer to the Bill of Lading).
Certificsate we have got :
- ISO 9001, ISO 14000
- Our company has been inspected and certificate by EMC
- CE And EN14511, EN 14825-ERP for heat pump exported to europe
- Energy label for all heat pump models sold to oversea market
- Testing laboratory calibrated by CNAS
After selling
1. We promise to offer free consulting call in 7~24 hours mode to
solve the problems found in practice.
2. Products guarantee is 18~24 months from ex-factory date. Within
18months,if any components of your products damaged because of
quality, we supply new replacement for free.
3. After the expiration of the quality assurance, we will continue
to provide lifelong maintenance services, with just charging some
cost price.
Packaging Details
Carton and Wooden Package,
Delivery Time
15 working days after arrival of down payment
