Technology Specification
Top design geothermal heat pump R417A under ground water source for
-25degree heating and hot water
Futures:
1. The world-famous Copeland Flexible Scroll Compressor has
functions such as low wear resistance, long service life,
over-current protection, phase loss protection, over-the-counter
protection, strong liquid-impact resistance, and high and low
voltage protection. Copeland compressor built-in pressure relief
valve in the body can automatically relieve pressure when the high
pressure is too high
2. The introduction of the latest Japanese technology in
conjunction with the company's control system has led to the
development of a unique electronic expansion valve control method
and the use of digital technology control to control the working
fluid to achieve the best flow velocity effect, thereby increasing
the COP value.
3. In combination with the United States and the United States
outside the threaded pipe technology, successfully created a
"spring" spiral tube new structure condenser. Better heat transfer,
faster heat transfer, and higher efficiency, minimize fouling,
extend heat pump life and reduce maintenance
4. The use of high efficiency plate heat exchanger, high heat
transfer efficiency, small footprint, and has a small heat
dissipation characteristics, in the case of water quality is not
very bad, the use of plate heat exchanger is the best choic
5. With powerful engineering supporting control functions , it can
control circulating water pump, make-up water , return water, water
supply , electric heating , PID automatic defrosting, etc., making
the control easier. According to the needs of different projects,
it can set various parameters by itself and realize various water
supply schemes . The entire system can be automated without special
care.
Water source heat pump installation in different situations
Water source heat pumps can use groundwater, river water, tap
water, industrial wastewater as a water
source, and people can choose suitable water sources according to
their most favorable conditions. If
groundwater is used, people can drill wells according to local
geology, and generally more wells than
pumping wells, because pumping water is easier than recharging.
Construction of other water source heat pump projects is relatively
easy.
|
Use :
Business Organizations
Supermarket, shopping malls, shops, department store, Sap, Room,
residential
hotels, restaurants, school, office;
Public Places
subway, airports, stations, bookstores, exhibition halls, stadiums,
museums, commercial buildings, hospital;
Entertainments Movie theaters, clubs, bars, cafes, Internet bars,
beauty shops
After selling
1. We promise to offer free consulting call in 7~24 hours mode to
solve the problems found in practice.
2. Products guarantee is 18~24 months from ex-factory date. Within
18months,if any components of your products damaged because of
quality, we supply new replacement for free.
3. After the expiration of the quality assurance, we will continue
to provide lifelong maintenance services, with just charging some
cost price.
Porduct Detalis
| Rated heating capacity | KW | 16 |
| Hot water supply | L/h | 380 |
| Average heating input power | KW | 4 |
| Rated heating input current | A | 9 |
| Max outlet water temp | ℃ | 80 |
| COP | | 4.2 |
| Power | V/Hz | 380V/50 |
| Noise | Db(a) | 50 |
| Dimension | W*D*H | mm | 657×557×765 |
| Packing size | W*D*H | mm | 737×637×915 |
| Unit weight | KG | 145 |
| Refrigerant | | R417A/R407C |
| Working air temp range | ℃ | (-40℃)—45℃ |
| compressor | Type | | Copeland |
| water source heat exchanger | Type | | Plate heat exchange |
| Pipe size | DN | 32 |
| Hot water side heat exchange | Type | | Coil heat exchanger |
| Water flow | L/H | 4000L/h |
| Water pressure down | Kpa | 40 |
| Pipe size | DN | 25 |
| Max house heating | M2 | 125 |
Certificsate we have got :
- ISO 9001, ISO 14000
- Our company has been inspected and certificate by EMC
- CE And EN14511, EN 14825-ERP for heat pump exported to europe
- Energy label for all heat pump models sold to oversea market
- Testing laboratory calibrated by CNAS
Payment service
1. T/T
2. L/C (for container order only)

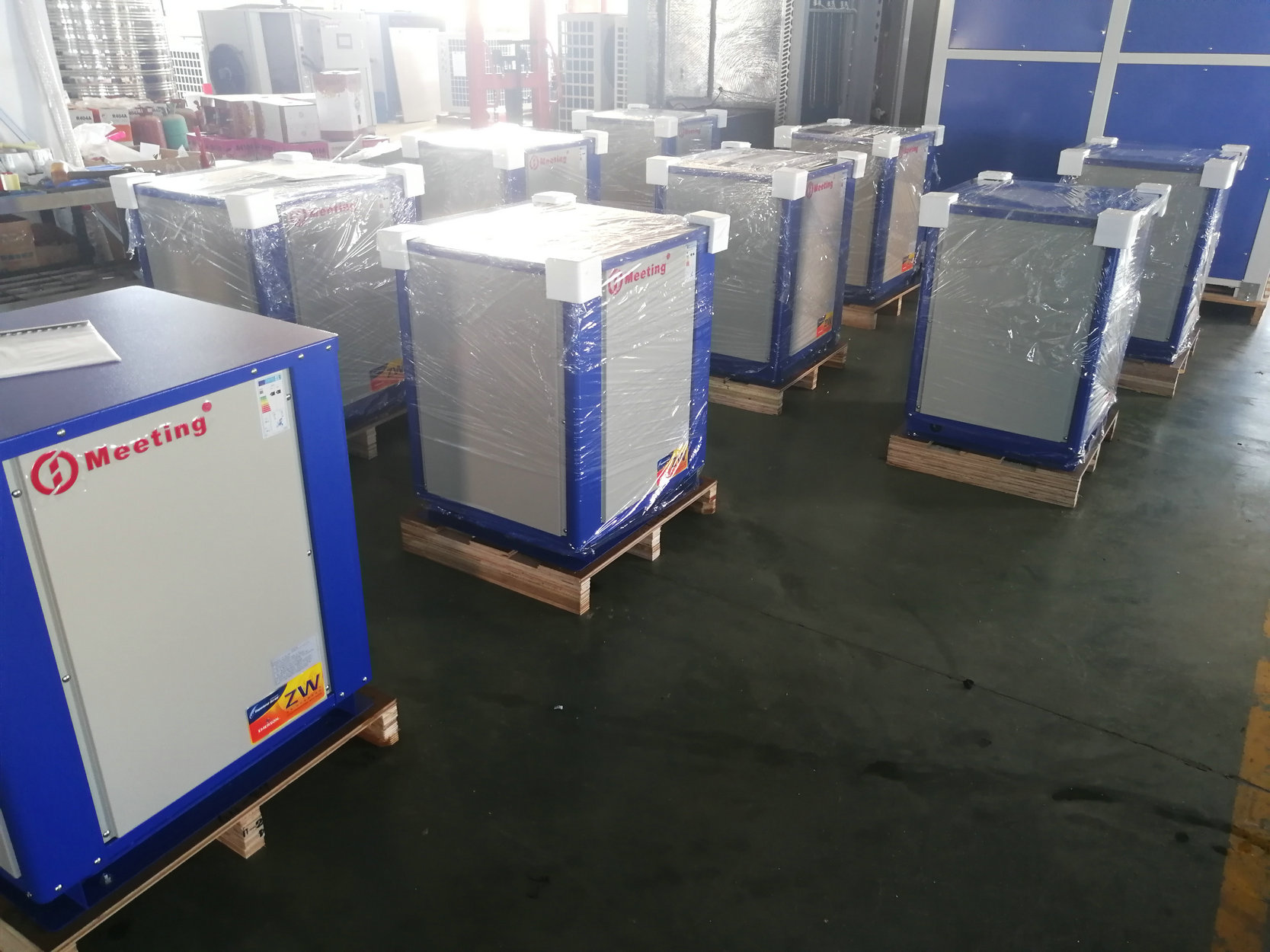

Plywood case
