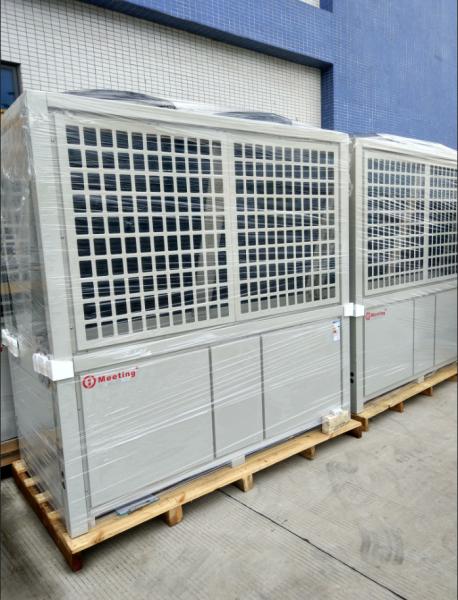

New design SWIMMING POOL heat pump water heater for low temperature
area
Swimming pool heat pump advantage
Swimming pool heat pump can save you up to 80% in operating cost
whether you just want to extend your
swimming season or swim all year round in a warm comfortable pool.
With special designed heat exchangers,
Swimming pool heat pump can give you the perfect water temperature
without a big increase in your power
bill, our swimming pool heat pump is a perfect selection to your
in-ground swimming pool or sea.
The product can be widely installed at any kind of places, such as
constant temperature swimming pools,
sauna constant hot water system and supplying domestic hot water to
home.
Swimming Pool Heat Pump heating:
* Long operating life
Using the advanced titanium in PVC or Nickeal-copper in PVC shell &
tube heat exchangers, which can resist corrosion from chlorine in
the water.
*Economical and high efficiency
Using the more efficient heat pump technology, compared to other
ordinary hot water equipment (for example, combustion oil boiler,
comb-ussion gas boiler and electrical boiler),it reduces operation
cost by 65%~80%,moreover,it produces little pollution for
environment.
*Innovative design, easy installation and replacement.
Monoboc ( single unit consrution)design, the unit is remarkable
compact and easy to install.
*Advanced control
It is extremely easy to control the swimming pump unit because of
the built-in computer with its intelligent control and LCD display.
*Use safely
A. Payment service
1. T/T
2. L/C (for container order only)
B. Technical service
1. We calculate the capacity and recommend the best models.
2. We supply you the professional refrigeration technical support
and electronic technical support for your installation, debugging
and operation.
3. We supply the spare parts and technical support in and after the
warranty time.
4. We supply the training course to your workers at our factory if
you need.
5. We can offer site training to your workers in your place which
is negotiable.
C. After-sales service
1. Technical support for your installation, operation and
maintenance.
2. Standard warranty time: One years’warranty for heat pumps
You can also pay for extended warranty or we can renegotiate the
longer warranty period.
- Spare parts and technical support at most economic prices after the
warranty.
FAQ
Q1. Can I have a sample order for Heat pump or Water tank?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-10days, mass production time depend on the
products' quantity.
Q3. Do you offer guarantee for the products?
A: Yes, 12 months since the heat pump depart from the port of
loading (Refer to the Bill of Lading).
Certificate we have got :
1> ISO 9001, ISO 14000
2> Our company has been inspected and certificate by EMC
3> CE And EN14511, EN 14825-ERP for heat pump exported to Europe
4> Energy label for all heat pump models sold to over sea market
5> Testing laboratory calibrated by CNAS
MD200D Parameters table
| MODEL | Unit | MDY200D |
| Rated heating capacity | KW | 84 |
| Average heating input power | KW | 19 |
| Rated heating input current | A | 35 |
| Max outlet water temp | ℃ | 35 |
| COP | | 4.5 |
| Power | V/Hz | 380V/50 |
| Noise | Db(a) | 65 |
| Dimension | W*D*H | mm | 1990*980*2080 |
| Packing size | W*D*H | mm | 2080×1150×2130 |
| Unit weight | KG | 650 |
| Refrigerant | | R417A/R407C/R410A |
| Working air temp range | | (-20℃)—45℃ |
| compressor | Type | | Copeland |
| Air source heat exchanger | Type | | Finned heat exchange |
| Fan Type | | axial flow fan |
| Hot water side heat exchange | Type | | Titanium heat exchanger |
| Water flow | L/H | 28000L/h |
| Water pressure down | Kpa | 60 |
| Pipe size(water connection) | DN | 63 |
