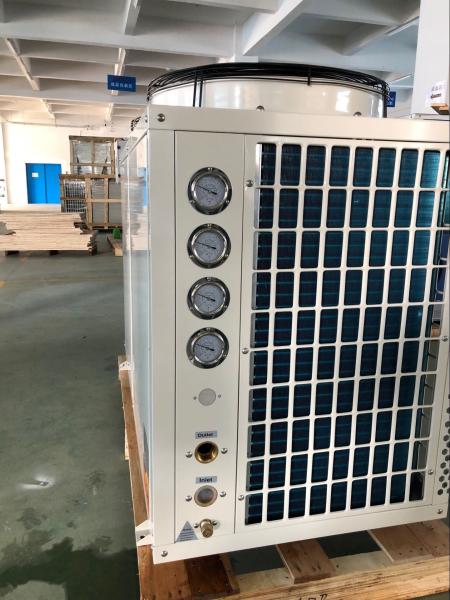

MD60D Top blowing 21KW Floor Heating Air Source Low Temp Heat Pump
Technology Specification
Features&Benefits :
Easy installation with different water tanks
| High efficiency with good performance |
Famous brand copeland compressor with R410a
| Enlarged heat exchangers, high COP |
Whisper quiet fan
| Intelligent controller |
Reverse cycle defrost with 4-way valve
| Hydrophilic fin coil coating |
Operation protection included
|
100% factory tested
|
Household air source heat pump (Mono-block type) has following
important features:
1. Working air temperature range:-20℃ to 45℃
2. Max outlet water temperature: 60℃
3. Circulating water pump inside( or outside heat pump)
4. Copeland compressor
5. R417A/R407C/R404Arefrigerant
6. Air temperature too low protection
7. High efficiency shell and tube water heat exchanger
Our Services
1. After installation, our company will be responsible for problems
caused by quality of production or raw material except the
damageable spare parts of heat pump caused by incorrect man-made
operation during the guarantee period.
2. Intelligent Controlling service system will be avoid the long
distance of the after sale problem. Wherever are you, our engineer
can be controlled your equipment, when some questions occur on the
equipment. Just tell us what number will be shown on the screen,
then the engineer will be solve the problem.
3. We accept OEM, ODM and customization.
4. 24*7 after sales service. You will get satisfied service.
5. We have More than 17years production and sales experience;
Professional sales team.
Packaging & Shipment
1> Meeting heat pump can sure delivery heat pump within 5~20
working days as we warehouse stock condition.
2> Heat pump with strong plywood pallet , strong plywood box for
loading, make sure no problem happen during rude transporattion .
3> All spare parts of the heat pump water heater will together
loading into package , one time finished shipment to buyer.
4> Take video of the heat pump for buyer before package to 100%
sure buyer get product same as order, no any different.
5>Meeting heat pump offer 100% test online, 5% test in Lab by 24
hour for one lot order (if not new model)
Packaging Details :Standard export packing -with plywoods case
packages,OEM is available for Factory price heat pump water heaters
Delivery Time :15 work days after arrival of down payment
Air source heat pump parameter tebles
| MODEL | Unit | MD60D |
| Rated heating capacity | KW | 21 |
| Rated Cooling capacity | | 15 |
| Hot water supply | L/h | 520 |
| Average heating input power | KW | 5.68 |
| Rated heating input current | A | 12 |
| Max outlet water temp | ℃ | 60 |
| COP | | 4.2 |
| Power | V/Hz | 380/50 |
| Noise | Db(a) | 60 |
| Dimension | W*D*H | mm | 1120*490*1270 |
| Packing size | W*D*H | mm | 1200*520*1425 |
| Unit weight | KG | 210 |
| Refrigerant | | R417A/R407C/R404A |
| Working air temp range | | (-20℃)—45℃ |
| compressor | Type | | Copeland |
| Air source heat exchanger | Type | | Finned heat exchange |
| Fan Type | | axial flow fan |
| Hot water side heat exchange | Type | | Coil heat exchanger |
| Water flow | L/H | 6000 |
| Water pressure down | Kpa | 48 |
| Pipe size | DN | 25 |
| Max flat spuare meter | M2 | 175 |
