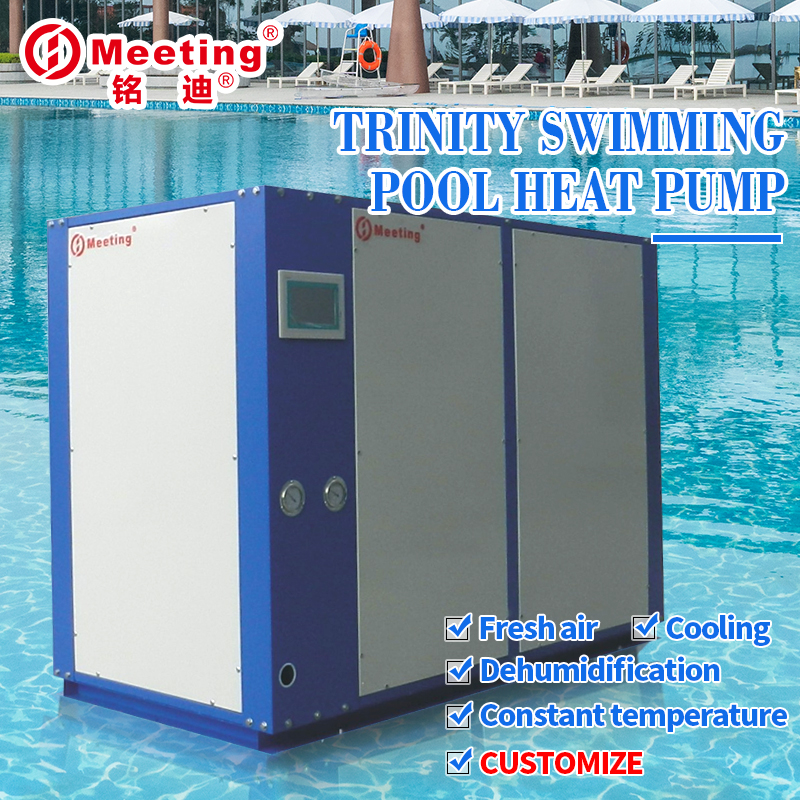

Customize! Swimming Pool Pump system, Multi-Functions Pool Heat
Pump, Indoor Air Source Heat Pump
Technology Specification
Rated voltage: 380V
Rated frequency: 50Hz
Rated current: 13A
Rated pressure: 0.4Mpa
Rated water temperature: 28 ° C
Maximum water temperature: 38 ° C
Water flow: 5000L/H
Interface size DN: 25 outer teeth mm
Noise: 45Db | Compression power: 4.6KW
Fan power: 1.5KW
Fresh air motor: 0.18KW
Total input power: 6.28KW
Heating capacity: 27KW
Cooling capacity: 17KW
Dehumidification capacity: 15L/H
Blower voltage: 380V | Air blower volume: 3080~6380m3
Blower full pressure: 552~605Pa
Fan static pressure: 539~555Pa
New fan voltage: 380V
Fresh air volume: 800~1500m3
New fan full pressure: 227~208Pa
New fan static pressure: 217~176Pa |
Machine size (length * width * height): 2150 * 1050 * 1380mm
Package size (length * width * height): 2380 * 1280 * 1540mm
Air outlet size (length * width * height): 485 * 382mm
Exhaust port size (length * width * height): 300 * 196mm
New air outlet size (length * width * height): 300 * 196mm
Return air outlet size (length * width * height): 700 * 345mm
Swimming pool heat pump
Quick Details
- Type: swimming pool Heat Pump
- Installation: Wall Mounted/Freestanding
- Storage / Tank less: Storage
- Housing Material: Stainless Steel or Galvanized Steel Sheet
- Use: Indoor Swimming Pool
- Certification: CE, EMC, UL, SAA, ETL, ISO9001
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Meeting, we welcome OEM
- Heat Pump Function: Dehumidification & Heating & Cooling & Constant
Temperature & Fresh Air & Hot Water for Bathing
- Heat Pump Lifetime: 15 Years+
- Ambient temperature: -25℃ to 45℃
- Heat Pump Leading Time: 1-25 Working Days
- EVI Heat Pump Compressor: R407C *Copeland* Scroll
- Inverter Heat Pump Compressor: R410A * Copeland *
- Port of Delivery: Guangzhou/Shenzhen Port
QC:
1. Complying with ISO standard. Quality Ensured.
2. Complete Inspection for each unit before out of factory,
covering water system and electricity detection and testing,
ensuring 100% right product before shipment.
3. Strict quality control during production. We have liquid soap
detection, halogen detection, electrical detection and
water-soaking detection during production to avoid gas leakage and
electrical problems.
4. Full inspection on bigger parts such as compressors, condensers,
evaporators, expansion valves, flow switches, controllers etc.
Selection inspection for small parts such as sensors, pressure
switches etc.
5. Well noise control by using mute cotton for casing plates and
soft rubber feet for floating compressors, some of the models use
compressor isolation shields.
6. Well insulated with insulated cotton for every pipe and parts,
include compressor, dryer filter and each pipes.
7. We have passed TUV and SGS inspections. We have CE, Ro HS, IEC,
CCC, CB certificates for most of our products. Some of our products
have en14511 test, en14825 test.
8. 100% test before shipment.
A. Payment service
T/T, 30% deposit, 70% balance before shipment.
B. Technical service
1. We calculate the capacity and recommend the best models.
2. We supply you the professional refrigeration technical support
and electronic technical support for your installation, debugging
and operation.
3. We supply the spare parts and technical support in and after the
warranty time.
4. We supply the training course to your workers at our factory if
you need.
5. We can offer site training to your workers in your place which
is negotiable.
C. After-sales service
1. Technical support for your installation, operation and
maintenance.
2. Standard warranty time: One years’warranty for heat pumps
You can also pay for extended warranty or we can renegotiate the
longer warranty period.
3. Spare parts and technical support at most economic prices after
the warranty.
FAQ
Q1. Can I have a sample order for Heat pump or Water tank?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-10days, mass production time depend on the
products' quantity.
Q3. Do you offer guarantee for the products?
A: Yes, 12 months since the heat pump depart from the port of
loading (Refer to the Bill of Lading).
Certificate we have got :
1> ISO 9001, ISO 14000
2> Our company has been inspected and certificate by EMC
3> CE And EN14511, EN 14825-ERP for heat pump exported to Europe
4> Energy label for all heat pump models sold to over sea market
5> Testing laboratory calibrated by CNAS
ABOUT US
1). We were established in 2001.
2). We are a professional heat pump manufacturer, Located around
Baiyun Air port
3). We are trading on Meeting Brand ,Meeting heat pump Well-know
brand we operate in Europe market
4). Our company has been inspected and certificated by TUV and SGS.
5). We are the one of the first manufacturers whose heat pumps are
with top COP gaining grants from Chinese government.
6). We passed ISO 9001 quality management system and ISO14000
environment protection system
7). Our testing laboratory can test heat pump up to 60KW heating
capacity and create testing air temperature condition during
-25DegC~45DegC,according to EN14511 standard.
8). Our leading products: Air to water heat pump , DC inverter heat
pump, High water temperature heat pumps,
Mono block house heating heat pumps, Split heat pump, super low
noise heat pump
Heat pump dryer, Ground source heat pump, water to water heat pump,
swimming pool heat pump
Customer's Project
