18.6KW Air Source Heat Pump Combine with Solar Heater, 380V
Galvanized Sheet Heat Pump Air to Water
Technology Specification
Feature
Indoor unit mainly includes condenser, 4-way valve and expansion valve.
Avoid the condenser to be burst in the cold weather, better
anti-freezing proctection
High efficient, lower heat dissipate
Auxiliary electronic heater or solar coiler is on your option
Fashionable design, compact structure, saving the place.
Quiet, lower the noise when the unit is running
Advance control panel. Timer function , automatic defrosting
function, optional electrical heating, error messages showed for
warning.
It can be work in -25°C low ambient temperature.
Hot water output temperature up to 60°C, for domestic hot water or
heating.
auto-defrosting function included. And cooling is optional
Outdoor unit comprises evaporator, fan and compressor.
Thermostatic heating element for evaporator anti-frosting
protection The water connections and the drain pipelines must be
protected against frost on site compressor outside, to reduce noise
mostly inside the
house.
Internal porduct accessorories
1 compressor
The world-famous Copeland Flexible Scroll Compressor has functions
such as low wear resistance, long service life, over-current
protection, phase loss protection, over-the-counter protection,
strong liquid-impact resistance, and high and low voltage
protection.
Copeland compressor built-in pressure relief valve in the body can
automatically relieve pressure when the high pressure is too high.
2 Electronic expansion valve
The introduction of the latest Japanese technology in conjunction
with the company's control system has led to the development of a
unique electronic expansion valve control method and the use of
digital technology control to control the working fluid to achieve
the best flow velocity effect, thereby increasing the COP value.
3 Condenstion heat exchanger
In combination with the United States and the United States outside
the threaded pipe technology, successfully created a "spring"
spiral tube new structure condenser.
Better heat transfer, faster heat transfer, and higher efficiency,
minimize fouling, extend heat pump life and reduce maintenance
4 Electronic control system
With powerful engineering supporting control functions, it can
control circulating water pump, make-up water, return water, water
supply, electric heating , PID automatic defrosting, etc., making
the control easier.
According to the needs of different projects, it can set various
parameters by itself and realize various water supply schemes . The
entire system can be automated without special care.
5 Evaporation heat exchanger
The use of hydrophilic membrane aluminum foil, even after long-term
use.
The use of a hydrophilic layer also does not result in oxidative
detachment.
The evaporator has a special advantage: Excellent skis performance
The more you can reduce the wind resistance, so that the condensate
drains out quickly outer.
Internally-threaded copper tube and corrugated aluminum foil
structure.
High evaporator efficiency.
A. Payment service
1. T/T, 30% deposite, 70% balance before shipment.
B. Technical service
1. We calculate the capacity and recommend the best models.
2. We supply you the professional refrigeration technical support
and electronic technical support for your installation, debugging
and operation.
3. We supply the spare parts and technical support in and after the
warranty time.
4. We supply the training course to your workers at our factory if
you need.
5. We can offer site training to your workers in your place which
is negotiable, we welcome you to be our partner.
C. After-sales service
1. Technical support for your installation, operation and
maintenance.
2. Standard warranty time: One years’warranty for heat pumps
You can also pay for extended warranty or we can renegotiate the
longer warranty period.
3. Spare parts and technical support at most economic prices after
the warranty.
FAQ
Q1. Can I have a sample order for Heat pump or Water tank?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-10days, mass production time depend on the
products' quantity.
Q3.Do you offer guarantee for the products?
A: Yes, 12 months since the heat pump depart from the port of
loading (Refer to the Bill of Lading).
Certificate we have got :
1> ISO 9001, ISO 14000
2> Our company has been inspected and certificate by EMC
3> CE And EN14511, EN 14825-ERP for heat pump exported to Europe
4> Energy label for all heat pump models sold to over sea market
5> Testing laboratory calibrated by CNAS
Our leading products
Air to water heat pump, water chiller, inverter heat pump, High
water temperature heat pump.
Mono block house heating heat pump, Split heat pump, Super low
noise heat pump
Heat pump dryer, Ground source heat pump, water to water heat pump,
swimming pool heat pump
Air to water heat pump working principle
Product details
1.Type:Electric Air source heat pump
2.Use: Any area
3.Certification:CE ISO CCC UKAS,ROHS
4.Place of Origin:Guangdong, China (Mainland)
5.Brand Name:Meeting
6.Model Number:MD50D-1
7.Condenser:Double thread copper tube heat exchanger
8.Evaporator:High efficiency inner thread tube connected with
9.Throttling Device:Electric expansiona valve
10.Refrigerant:R417A ,R407A,R410A/R22
11.Net Weight (kg):160
12.Compressor:Copeland
13.Power supply:380V/50HZ
14.Working air temp range:-15—(45)
15.Standard export package: Ply-wooden case with dusty-proof film
inside, needn't fumigation.
16.OEM is available
17. Delivery Time:15 working days after arrival of down payment.

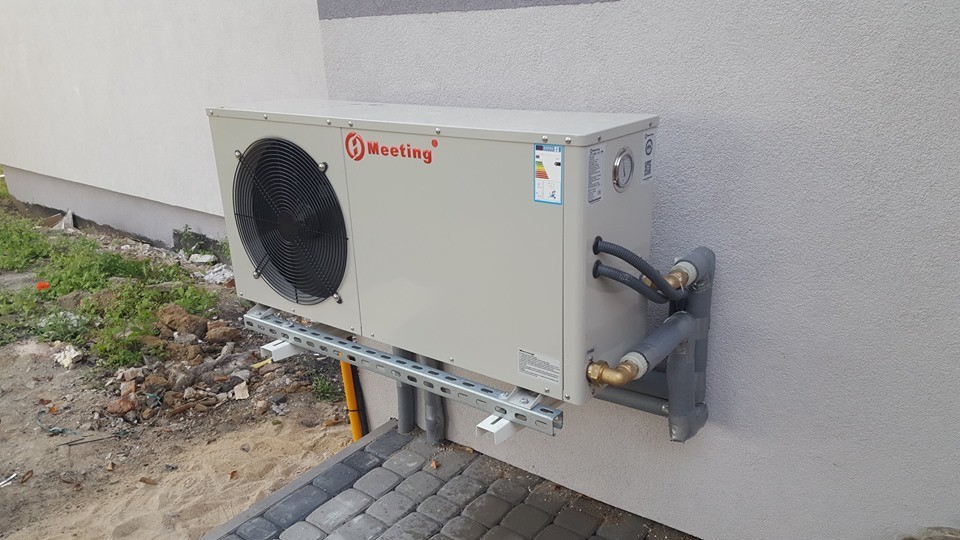

Project
