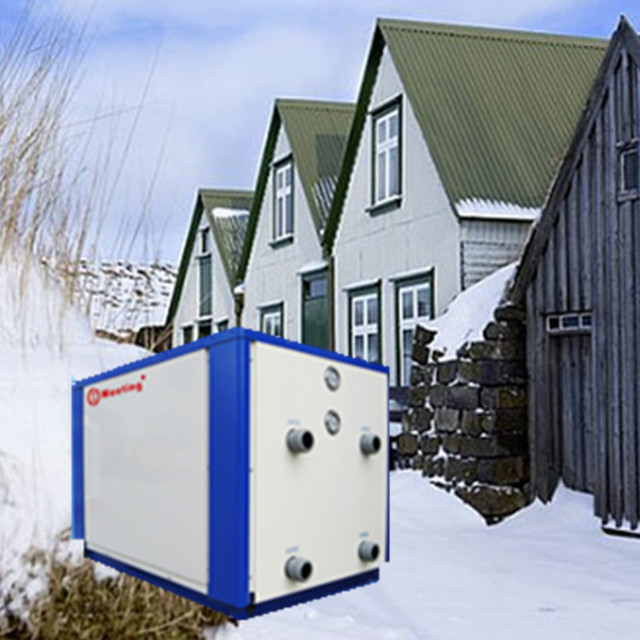

Heat pump 8.8KW heat supply system for waste water recovery and
pool cooling and heating combined supply
Technology Specification
Rated input power:8.8KW
Rated heating capacity :38KW
Rated cooling capacity :28KW
Rated voitage:380V
Rated frequency:50HZ
Rated current :18A
Rated outlet water temperature :55℃
Maximum outlet water temperature :60℃
Compressor :Copeland | Working air temp:-45℃—45℃
Load side water flow:15000L/H
Heat source side water flow: 12000L/H
Pipe size of load side:DN63mm
Pipe size of heat source side:DN63mm
Noise Db:≤40Db
Evaporator:Titanium heat exchanger
Condenser:Titanium heat exchanger
Throttle units:thermal expansion |
About us:
1). We were established in 2001.
2).We are a professional heat pump manufacturer,Located arround
baiyun Air port
3). We are trading on Meeting Brand ,Meeting heat pump Well-know
brand we operate in Europe market
4). Our company has been inspected and certificated by TUV and SGS.
5). We are the one of the first manufacturers whose heat pumps are
with top COP gaining grants from Chinese government.
6). We pass ISO9001 quality management system and ISO14000
environment protection system
7). Our testing laboratory can test heat pump up to 60KW heating
capacity and create testing air temperature condition during
-25DegC~45DegC,according to EN14511 standard.
8). Our leading products: Air to water heat pump , DC inverter heat
pump, High water temperature heat pumps Monoblock house heating
heat
pumps ,Split heat pump ,Super low noise heat pump Heat pump dryer
,Ground source heat pump , water to water heat pump , swimming pool
heat pump

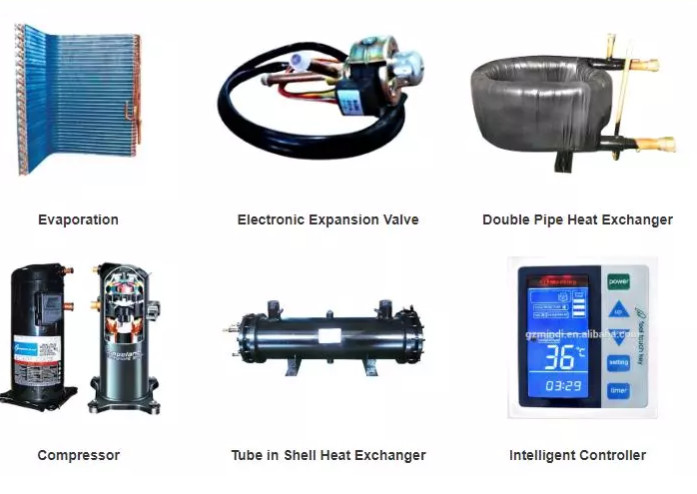

Internal porduct accessores:
1 compressor
The world-famous Copeland Flexible Scroll Compressor has functions
such as low wear resistance, long service life, over-current
protection, phase loss protection, over-the-counter protection,
strong liquid-impact resistance, and high and low voltage
protection. Copeland compressor built-in pressure relief valve in
the body can automatically relieve pressure when the high pressure
is too high
2 Electronic expansion valve
The introduction of the latest Japanese technology in conjunction
with the company's control system has led to the development of a
unique electronic expansion valve control method and the use of
digital technology control to control the working fluid to achieve
the best flow velocity effect, thereby increasing the COP value.
3 Condenstion heat exchanger
In combination with the United States and the United States outside
the threaded pipe technology, successfully created a "spring"
spiral tube new structure condenser. Better heat transfer, faster
heat transfer, and higher efficiency, minimize fouling, extend heat
pump life and reduce maintenance
4 Electronic control system
With powerful engineering supporting control functions , it can
control circulating water pump, make-up water , return water, water
supply , electric heating , PID automatic defrosting, etc., making
the control easier. According to the needs of different projects,
it can set various parameters by itself and realize various water
supply schemes . The entire system can be automated without special
care.
5 Evaporation heat exchanger
The use of high efficiency plate heat exchanger, high heat transfer
efficiency, small footprint, and has a small heat dissipation
characteristics, in the case of water quality is not very bad, the
use of plate heat exchanger is the best choic
A. Payment service
1. T/T
2. L/C (for container order only)
B. Technical service
1. We calculate the capacity and recommend the best models.
2.We supply you the professional refrigeration technical support
and electronic technical support for your installation, debugging
and operation.
3. We supply the spare parts and technical support in and after the
warranty time.
4. We supply the training course to your workers at our factory if
you need.
5. We can offer site training to your workers in your place which
is negotiable.
C. After-sales service
1. Technical support for your installation, operation and
maintenance.
2. Standard warranty time: One years’warranty for heat pumps
You can also pay for extended warranty or we can renegotiate the
longer warranty period.
3. Spare parts and technical support at most economic prices after
the warranty.
Use
Business Organizations
Supermarket, shopping malls, shops, department store, star-rated
hotels, restaurants, school, office;
Public Places
subway, airports, stations, bookstores, exhibition halls, stadiums,
museums, commercial buildings, hospital;
Entertainments Movie theaters, clubs, bars, cafes, Internet bars,
beauty shops
Packaging Details
Carton and Wooden Package,
Delivery Time
15 working days after arrival of down payment |
|
